Adjustable swivel ring hanger for heating systems 502/521
Click on the images to zoom
Suspension pear collar 502/521 adapted to the implementation of heating and sprinkler systems.
Informations
- Save up to 40% in labour time compared to normal systems.
- Fastening system using clips, allowing pipe pre-fabrication of pipework.

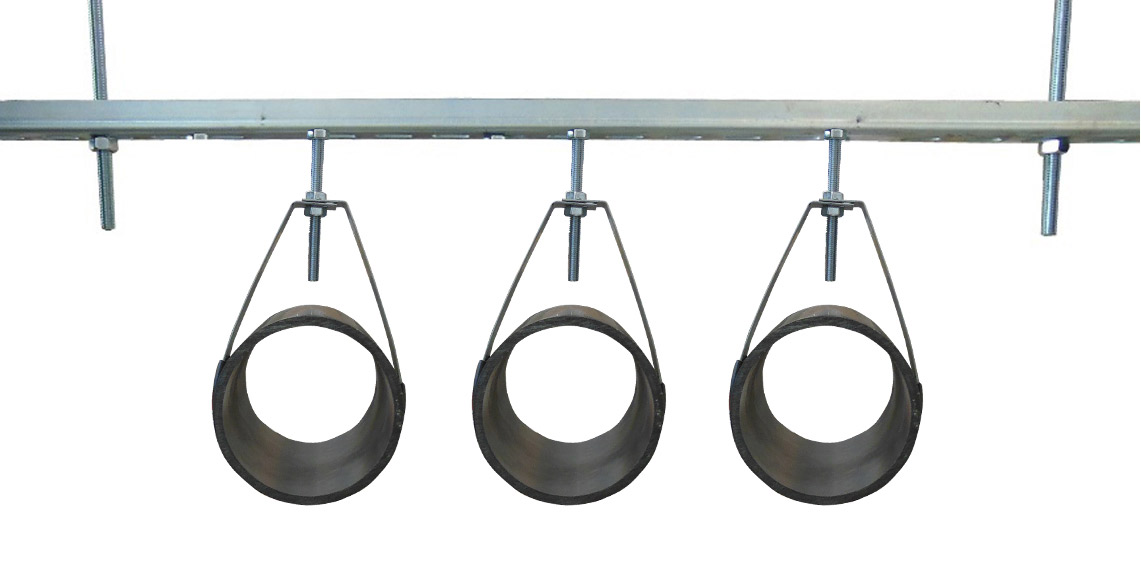

- Adapted to surface mounting on rails.
- Fine adjustment facilitated by the available space between the top of the pipe and the attachment system.

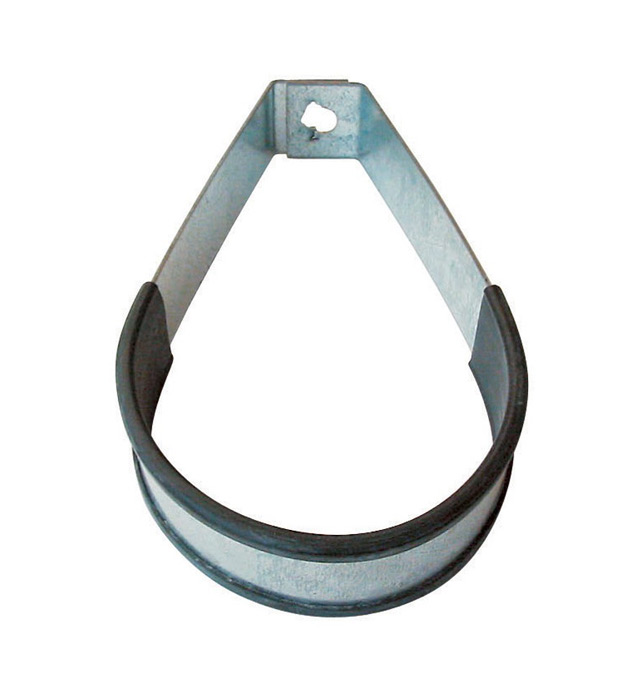

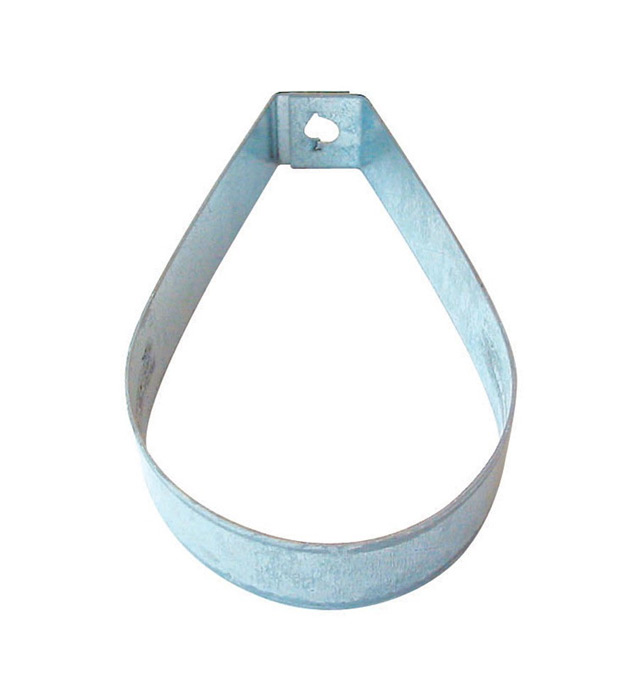

- Non-insulated collar ref 502 or isophonic collar ref 521 (EPDM 70 shores insulation).
- In galvanized steel DX 51 D + Z275 NF EN 10142.
- Certified ISO 9001.

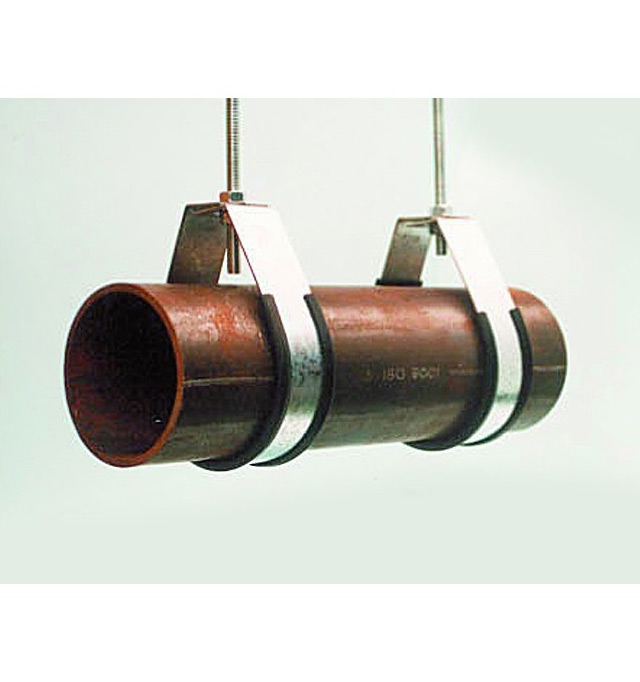

PDF documentationThe pear-shaped collar type 502/521 is designed for steel pipes. It uses a fastening system with clips similar to the pear-shaped collar ref 401/421, which makes it easier to use compared to the traditional support systems. This suspension collar can be installed for fire sprinkler systems or for surface mounting heating systems (on rails). Reference 502 is the non-insulated version and reference 521 is isophonic with a strip of insulating rubber EPDM 70 shores.
It is available from diameter ˝ inch to 8 inches.
