TOPCELT support collar
Click on the images to zoom

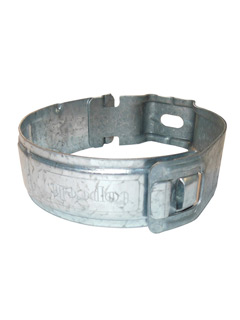

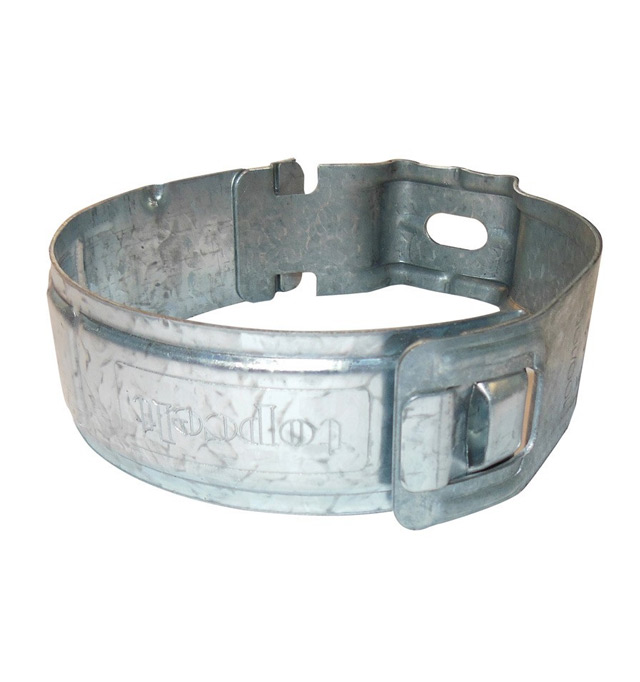

"Screwless" TOPCELT support collar for PVC pipelines. Simple, fast and efficient installation in any position.
Informations
- For PVC evacuation pipes (allows the free expansion of plastic tubes).
- Quick clamping by folding using a screw-driver.
- Adjustable collar, oblong hole fixation.
- Wide bearing surface.
- Support leg from diameter 6” 1/3 for horizontal pipes.
- In galvanize steel DX 51 D + Z 275 NF EN 10142 (ref 610) or inox (ref 630)

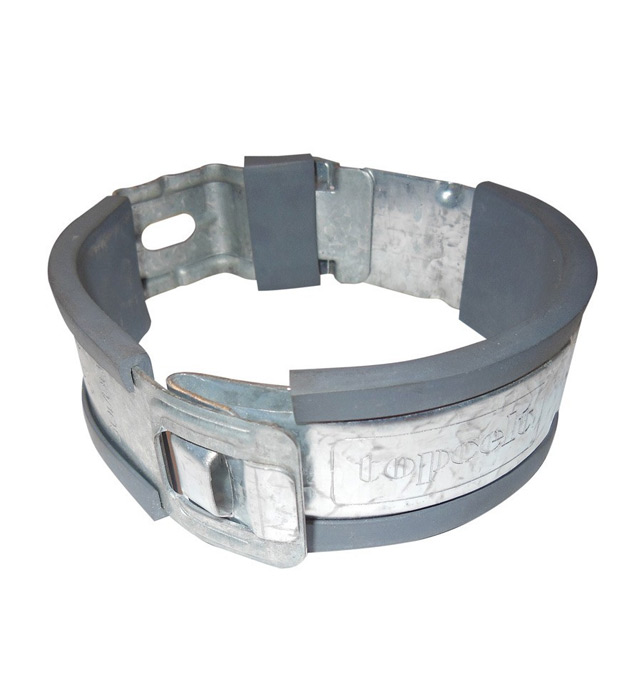

- 2 models: non-insulated model or isophonic model (EPDM 70 shores insulation)
- ISO 9001 certified
PDF documentation
Instruction manual
Video
TOPCELT support collar 610/611 is only used for PVC pipes installations.

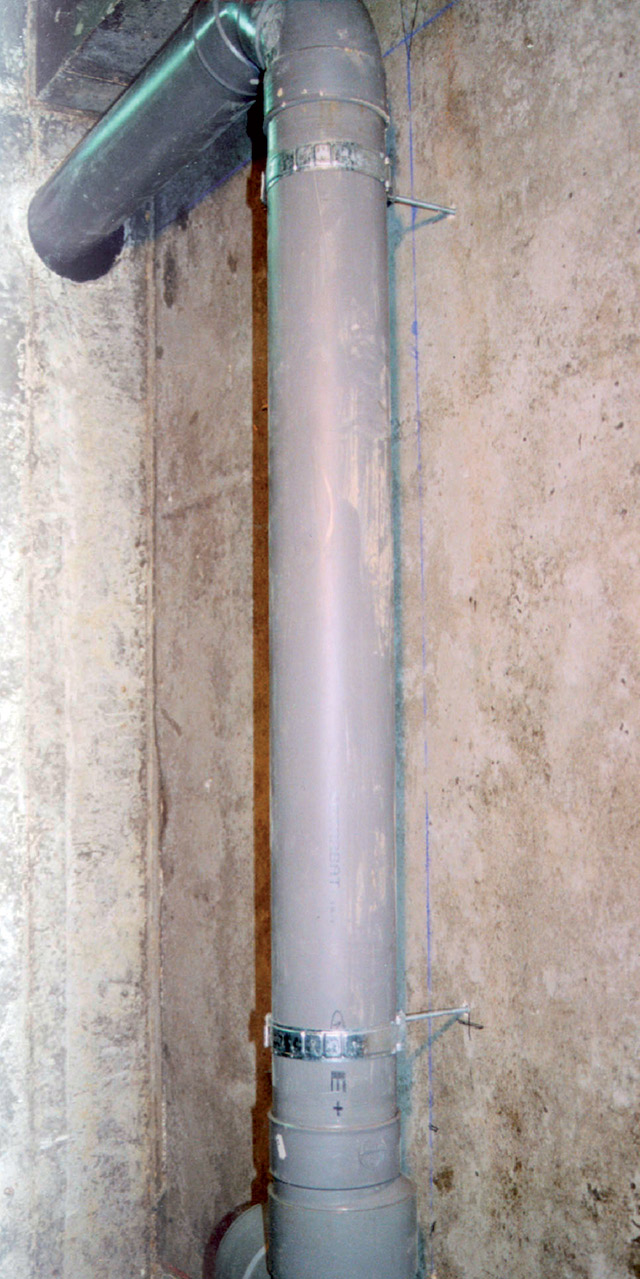

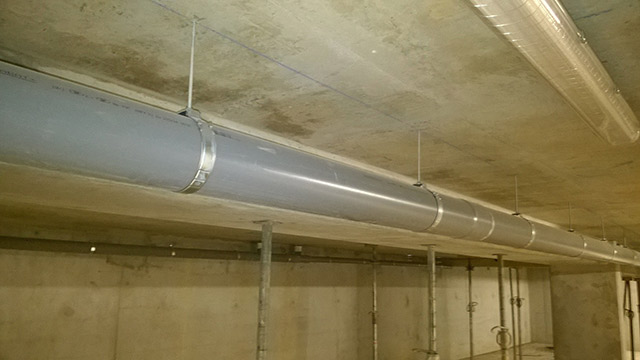

It can be fitted in all positions (horizontally against the wall, vertically or on the ceiling). The system uses no screws, clamping is done by folding using a flat screw-driver as a lever.

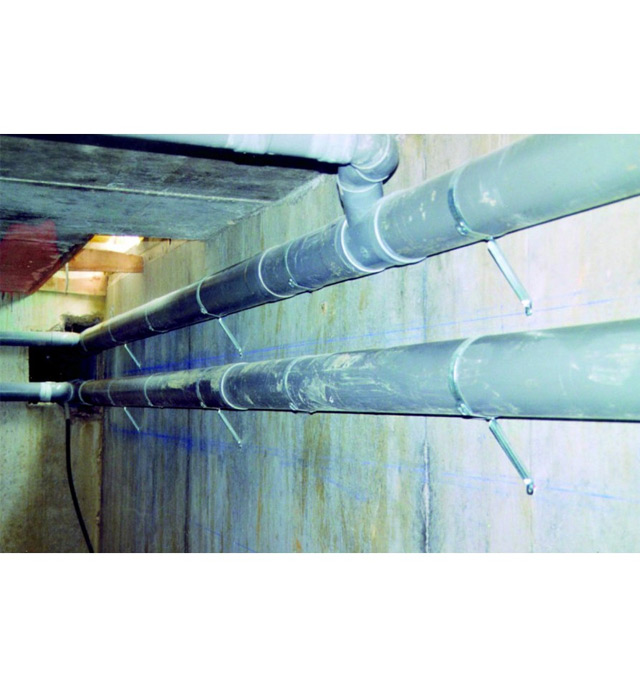

For horizontal pipe laying against a wall, a support leg will be necessary from diameter 6" 1/3. The TOPCELT collar is available in several models: galvanized steel or inox and isophonic or non-insulated. The collar can also be used for guttering down-pipes. Inox TOPCELT is also used for installations under slabs, and will ensure the smooth running of your installation.
