Support et étrier : type 201/301
Click on the images to zoom

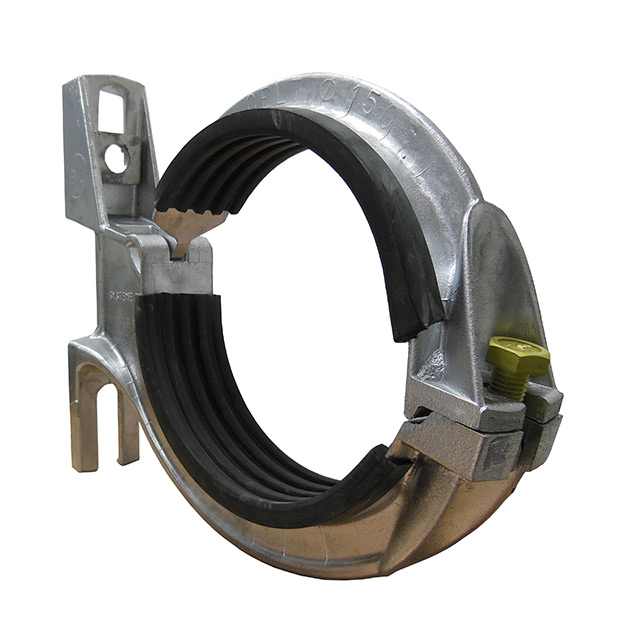

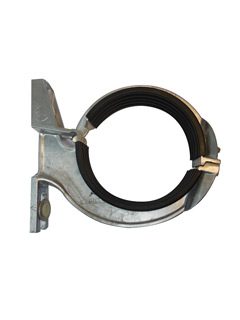

Pipeline support and hanger bracket ref 201/301 in AS13 aluminium for cast-iron or PVC pipes. Easy fitting and disassembly.
Informations
- Vertical adjustments up to 50 mm (± 2").
- Wedges (accessory) for a level installation.
- Auto-tightening installation with a sliding plate and the slotted hole.
- Extra lower fixing allowing installation in vault (casing wedge) or on a base.

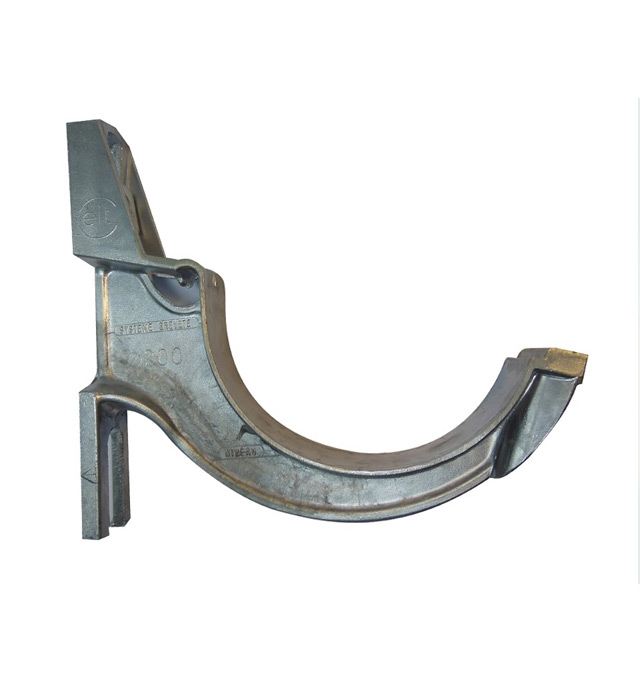

- Outer end of the cradle slightly offset allowing the tubes to slide without shocks.
- Corrosion-proof, can be installed in corrosive environments.

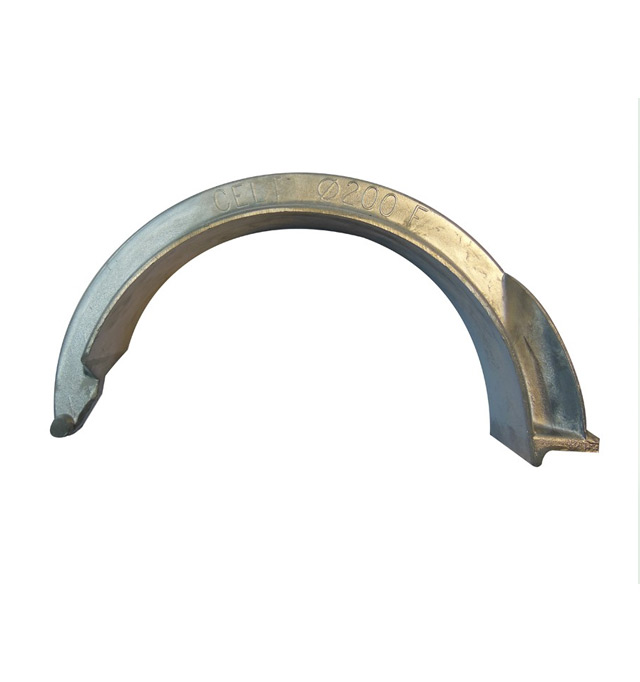

- Positioning of the hanger bracket facilitated by the indentation in the cradle.
- Easy installation and disassembly, with line in service (with wall plug and screw).
- Range of fitting accessories.

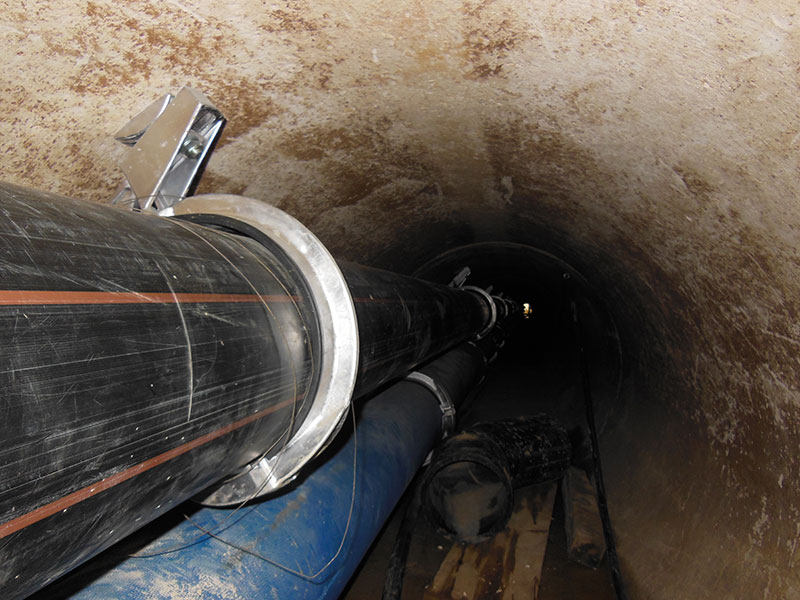

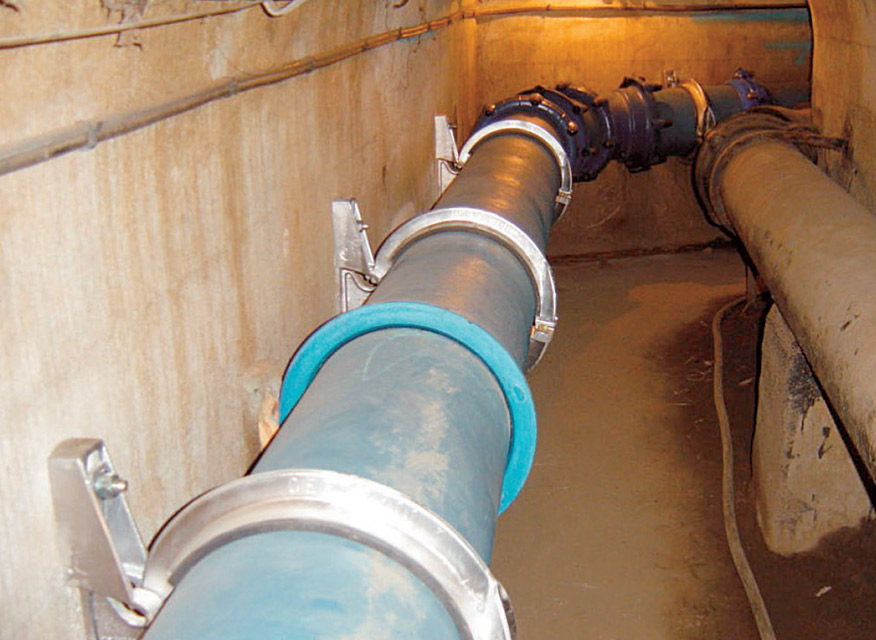

PDF documentationThe support and hanger bracket ref 201/301 was developed for water adduction systems. It is mainly installed in gallery and cantilever. This product may be equipped with accessories such as casing wedges to enable installation in vault and wedges to offset the brackets from the wall. There are also polyamide washers to: isolate fixation part from the support, to avoid stray currents and galvanic corrosion. The support and hanger bracket has good resistance in corrosive environments such as sea air.

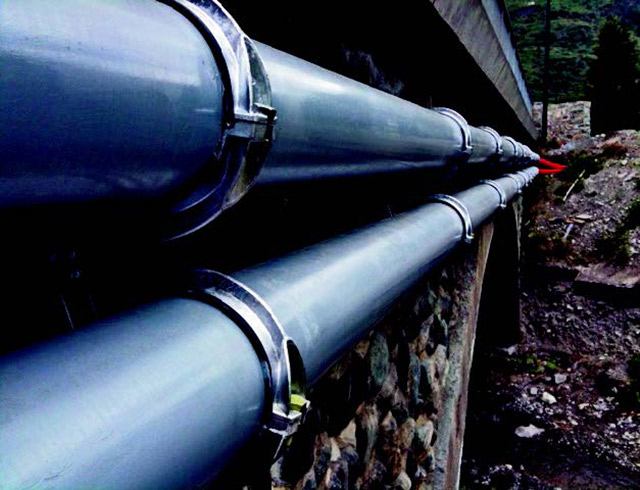

Developed for cast-iron pip, it is also used for HDPE, pressure PVC and thermally insulated pipelines, for a diameter ranging from 2"1/3 to 17".
